Sinometer UT205 Auto-ranging AC 1,000 Amp Clamp Meter

Sinometer UT205 Auto-ranging AC 1,000 Amp Clamp Meter Reviews

Other Picture

Sinometer UT205 Auto-ranging AC 1,000 Amp Clamp Meter Feature

• Measures AC current up to 400 amps
• AC/DC voltage, AC current, resistance, frequency, capacitance, continuity, duty cycle & diode check
• Built-in flashlight for AC current measurement
• Data hold + relative value measurement
• 30 days money back guarantee and 1 year limited warranty

Specifications:

Max. LCD display: 3999
Range selection: auto
DC voltage: 0.4/4/40/400 V ± 0.8%, 600 V ± 1.0%
AC voltage: 4/40/400 V ± 1.2%, 600 V ± 1.5%
AC current: 400A ± 1.5% / 1000 A ± 3.0%
Resistance: 400 ± 1.2%, 4k/40k/400k ± 1.0%, 4 Mohm ± 1.2%,40 Mohm ± 1.5%
Capacitance: 4n ± 5.0%, 40n/400n/4u/40uF ± 3.0% 200uF ± 4.0%,
Frequency range: 10 Hz -10 MHz ± 0.1%
Duty cycle:0.1% -- 99.9%
Diode test: yes
Continuity test: yes
Dimensions 11 x 4 x 2 ¼ inches
Power: 9V 6F22 battery
Weight: 530 grams

Features:

Built-in flashlight for AC current measurement
Data hold
Back-lit LCD screen
Relative measurement
Sleep timer (can be disabled)

What's in the box:

UT205 clamp meter
Test leads with probes
9V battery: 1
AAA battery: 1
Test leads with alligator clips
User manual
ABS Carrying case

Visit Store Now !!

Detail Products

Detail Reviews

Sinometer 8-Function 20-Range Analog & Digital Multimeter with Battery Tester, 7030

Sinometer 8-Function 20-Range Analog & Digital Multimeter with Battery Tester, 7030 Reviews

Other Picture

Sinometer 8-Function 20-Range Analog & Digital Multimeter with Battery Tester, 7030 Feature

• AC/DC V/A 0-200uA 0-200mV 20Mohm 1.5/9V Battery Tester
• 1.5V and 9V battery tester
• Zero Adjustment
• Confirms to the EN61010/IEC1010 standard CAT II 600V
• 1 year warranty

The newly introduced Sinometer 7030 analog multimeter is fully featured and can be used to measure AC/DC current and voltage, resistance, as well as diode and continuity buzzer. It also has a built-in 1.5V and 9V battery tester with a 100mA/10mA load respectively. One thing unique about this meter is it comes with a digital display, so you can read both the analog dial and watch the variation of the parameter, and get a fairly accurate reading from the display. Specifications: DC Voltage: 0~200m/2/20/200/600V Digital display: ±0.5% Pointer: ±3%, AC Voltage: 0~2/2/20/200V Digital display: ±0.8% Pointer: ±4%, 200m/600V Digital display: ±1.2% Pointer: ±4% DC Current: 0~200?/2m/20mA Digital display: ±1.0% Pointer: ±3% 200mA Digital display: ±1.2% Pointer: ±3%, 10A Digital display: ±1.5% Pointer: ±3%, AC Current: 0~200?/2m/20mA Digital display: ±1.5% Pointer: ±4%, 200mA Digital display: ±1.8% Pointer: ±4%, 10A Digital display: ±2.0% Pointer: ±4%, Resistance: 0~200/20M? Digital display: ±1.2% Pointer: Pointer: ±3%, 2k/20k/200k/2M? Digital display: ±0.8% Pointer: Pointer: ±3%, Diode Test: Test current: approx 1mA, Test voltage: approx 2.4V, Continuity Buzzer: 0~30? Sound, Battery tester: 1.5V/9V. Accessories include Test leads, 9V battery (installed), Protective holster and User Manual

Visit Store Now !!

Detail Products

• SE Clip Test Lead Set (10 Piece)
• Solder Sucker
• NETGEAR GS105 ProSafe 5-Port Gigabit Ethernet Desktop Switch - 10/100/1000 Mbps
• Equus 3320 Auto-Ranging Digital Multimeter
• Extech TL809 Electronic Test Lead Kit

Detail Reviews

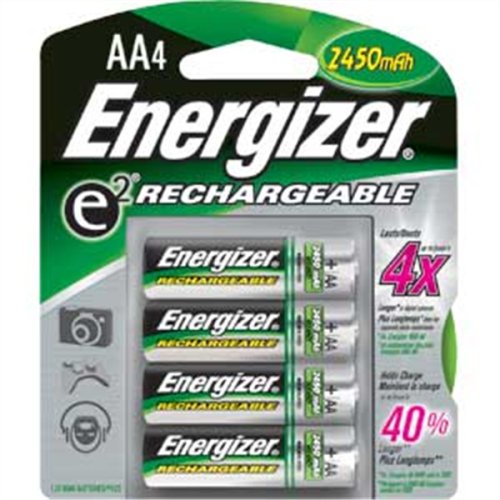

Rechargeable Batteries by Energizer® - AA - Pack of 4

Rechargeable Batteries by Energizer® - AA - Pack of 4 Reviews

Other Picture

Rechargeable Batteries by Energizer® - AA - Pack of 4 Feature

• Volt: 2450 mAh
• Package of 4
• Highly recommended for high drain or frequently used devices - ones that you use more than once a week - such as digital cameras, MP3 players, CD players, two-way radios, remote control cars, handheld games, photoflash and GPS equipment
• Also recommended for toys, infant devices and PDA's
• Not recommended for remote controls, radios and medical & safety devices such as smoke detectors (for those, use Alkaline batteries, like Energizer® Max®)

Model Number NH15BP4EN

Visit Store Now !!

Detail Products

• Rechargeable Batteries by Energizer® - AAA - Pack of 4
• Energizer Rechargeable Batteries, AAA, 4-Count, (Pack of 2)

Detail Reviews

Cables To Go 39004 SOHOTest-E Residential Cable Tester

Cables To Go 39004 SOHOTest-E Residential Cable Tester Reviews

Other Picture

Cables To Go 39004 SOHOTest-E Residential Cable Tester Feature

• Save yourself the time and cost of an extra service call! This easy-to-use tester helps novice home network users determine cable faults before calling for service

So easy to use, it tests residential wiring with f-type and RJ45 connector jacks - up to 656 feet!

Visit Store Now !!

Detail Products

Detail Reviews

UNI-T UT10A Portable Auto Ranging Digital Multimeter, Max. Display 3999

UNI-T UT10A Portable Auto Ranging Digital Multimeter, Max. Display 3999 Reviews

Other Picture

UNI-T UT10A Portable Auto Ranging Digital Multimeter, Max. Display 3999 Feature

• Max. Display: 3999, powered by 3V Button Battery (CR2032)
• Sound Warning when incorrect banana jacks are used relative to function switch setting
• Low Battery Display,Full Icon Display, Data Hold Function,Rotary Switch,Sleep Mode
• DC/AC Voltage Measurement,Resistance,Frequency,Duty Cycle,Diodes,Continuity,Capacitance Measurement
• Standard Accessories:Test Lead, Battery, English Manual, Vinyl Holder

This Model UT10A multimeter is a 3 3/4 digits with steady operations, fashionable structure, low power consumption and highly reliable hand-held measuring instrument. The Meter uses large scale of integrated circuit with double integrated A/D converter as its core. The Meter not only can measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance,Frequency, Diodes and Continuity, but also has Relative Mode, Data Hold, Full IconDisplay, Duty Cycle and Sleep Mode features.To preserve battery life, the Meter automatically turns off if you do not turn the rotary switch or press any button for around 15 minutes. The Meter can be activated by pressing any functional buttons or turning the rotary switch. When the Meter is activated by pressing SELECT button, the Sleep Mode feature will be disabled.

Basic functions, measurement range and accuracies

DC Voltage 400mV/4V/40V/300V (0.8%+1)
AC Voltage 4V/40V/300V (1.2%+3)
Resistance 400W/4kW/40kW/400kW/4MW/40MW (1%+2)
Capacitance 4nF/40nF/400nF/4µF/40µF/200µF (4%+3)
Frequency 10Hz/100kHz (0.5%+3)

Visit Store Now !!

Detail Products

Detail Reviews

Armada Technologies GFL3000 Ground Fault Locator

Armada Technologies GFL3000 Ground Fault Locator Reviews

Other Picture

Armada Technologies GFL3000 Ground Fault Locator Feature

• Designed to locate wire/cable damage
• Pinpoints Ground faults
• Features both high and low power capability
• Visual Meter makes locating wires easier

The Armada Technologies GFL3000 Ground Fault Locator is a new low cost locator for contractors and maintenance personnel. Incorporating dual power output, the Armada Technologies GFL 3000 pinpoints ground faults where electrical voltage is being lost to ground. The Armada Technologies GFL:3000 transmits a powerful charge that is tracked by the Armada Technologies GFL/3000 A-Frame receiver. By simply going in the direction of the analog needle kicks on the receiver, the exact spot of the fault can be found. Connect the transmitter to ground and the wire to be analyzed and turn it on. Follow the kicks with the receiver using the visual meter.

Visit Store Now !!

Detail Products

Detail Reviews

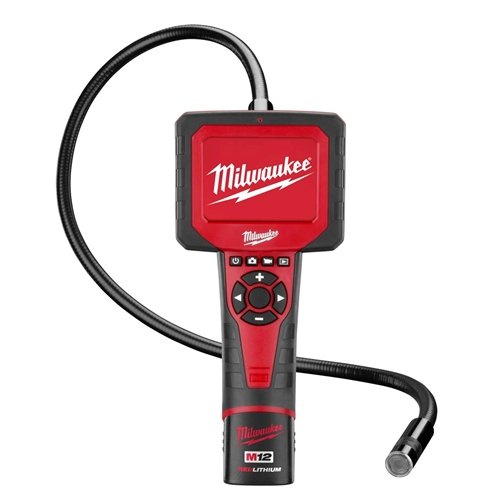

Milwaukee 2311-21 Digital Inspection Camera, 12V (GEN 2)

Milwaukee 2311-21 Digital Inspection Camera, 12V (GEN 2) Reviews

Other Picture

Milwaukee 2311-21 Digital Inspection Camera, 12V (GEN 2) Feature

• M-Spector AV has 4X zoom
• 4X LED control
• Live image rotation
• Images or videos recorded can be viewed in the M-Spector AV playback mode as well as downloaded directly to a computer via the included USB cable

The Milwaukee M-Spector AV cordless multimedia camera kit incorporates picture, audio and video capabilities, along with the capacity for professionals to inspect and document issues, download the information to their computer and send visual confirmation to a customer or supervisor for review. The M12 M-Spector AV Model 2311-21 includes a 17mm digital flexible camera cable for general applications. Diameter (in.): 11/16, Monitor Type: 3 1/2in. Monitor, Display Type: LCD screen, Battery Type: M12, Battery Included: Yes, Auto Shutdown: Yes, Dimensions L x W x H (in.): 13 7/16 x 17 5/16 x 5 3/16, Water Resistant: Yes, the probe only, Case Included: Yes

Visit Store Now !!

Detail Products

• Milwaukee 48-53-0140 M12 M-Spector Av 8-Foot Extension Cable
• Milwaukee 48-11-2401 12-Volt Lithium-ion Cordless Tool Battery
• Milwaukee 48-53-0110 3-Foot Extension for M-Spector Digital Inspection Camera
• Milwaukee 48-11-2402 M12 Xc Battery Pack
• Milwaukee 48-53-0130 M12 M-Spector Av Camera Cable 9.5Mm

Detail Reviews
